What is it?

Phoenix Ovipositor is a multi-purpose device.

It monitors

When Ovipositor is connected between the keyboard and the computer (even if it's internally or externally), Ovipositor collects the pressed keys by the user and stores them in a microSD card. This is accomplished transparent to end users.

It acts

Ovipositor can act as a combination of USB memory and keyboard.

It communicates

Allows interaction with multiple devices, using different communication modules

It integrates

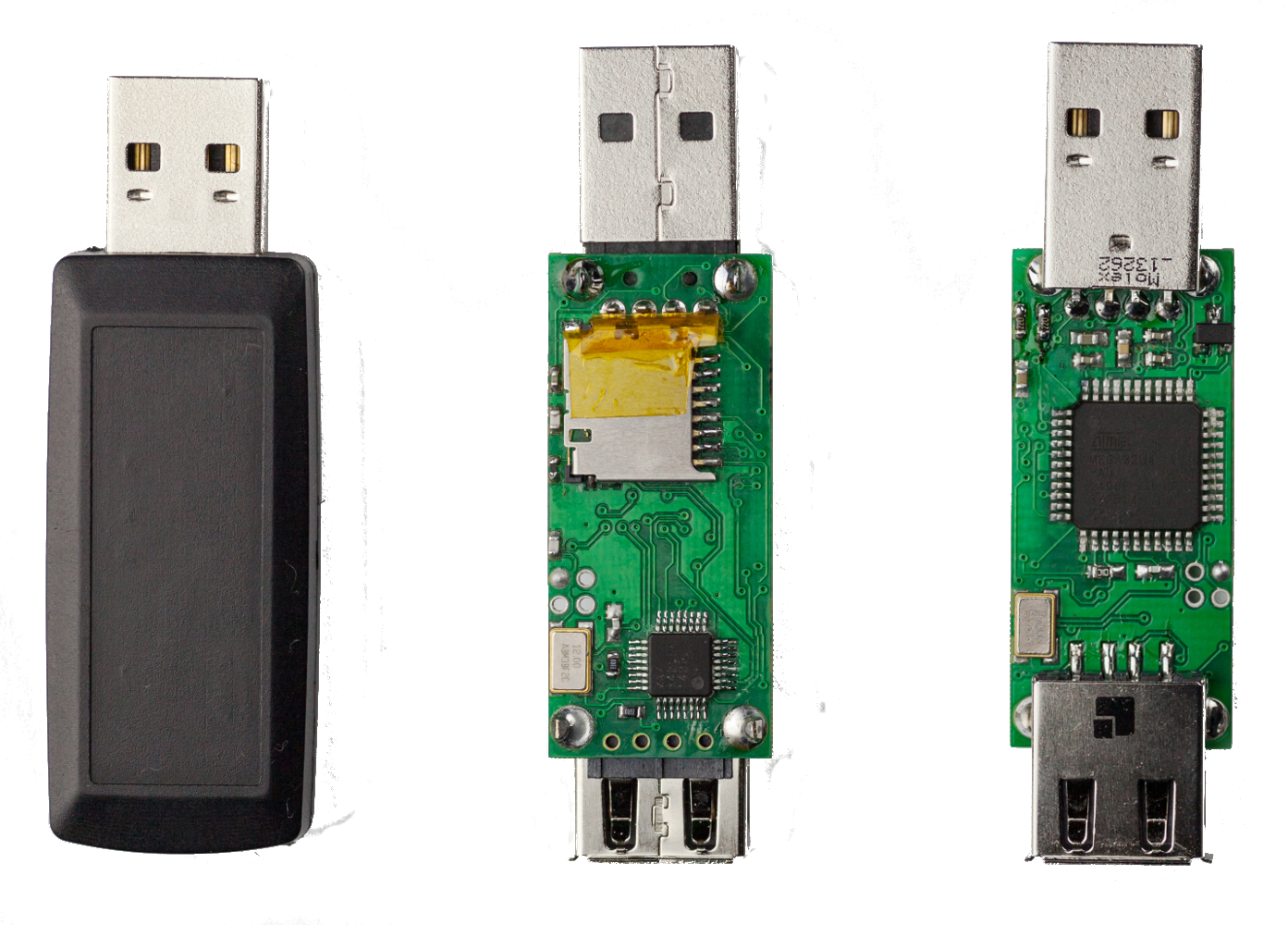

Ovipositor is sold enclosed (the same external appearance as an USB stick), or in a simple PCB form for integration purposes.



Monitors data entered from the keyboard, regardless of host operating system, even if it has not booted yet.

(Windows - Linux - MacOS - Android)

Setting up

Silent software installation: it can emulate keystrokes through a simple scripting system.


It provides a serial port which allows to control Android devices or using communication modules (WiFi, Bluetooth, ZigBee...).

Obtained data delivering to mobile devices.


It allows to control mobile devices through OTG, using ADB commands.

Technical features

Ovipositor PCB
  • PCB size:
    • With no connectors: 38 x 17 mm.
    • With male USB connector: 54 x 17 mm.
    • With male and female USB connector: 62 x 17 mm.
  • ATmega32U4 Microcontroller, 16 MHz.
  • MicroSD slot, up to 32 GB.
  • Serial port, VCC (3,3V) and GND + VCC pins availables.
  • Possibility of custom firmware development.
See product data sheet.
